Whitepaper: High-Precision Cast Film Extrusion and Co-Extrusion Technology Roadmap

In the contemporary polymer processing ecosystem, the choice of extrusion equipment determines not only output capability, but also product consistency, raw material yield, and overall carbon footprint. Cast film extrusion operates at the intersection of complex polymer rheology, high-speed thermal dynamics, and mechanical precision. Unlike blown film setups, cast film extrusion delivers unparalleled optical clarity, uniform thickness distribution, and outstanding post-processing orientation capacity. This document details the technology roadmap, macro solutions, and industry developments driving Gwell Machinery’s competitive advantage.

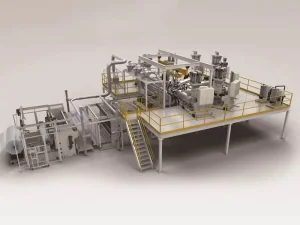

1. The Evolution of Multi-Layer Co-Extrusion (1-9 Layers)

Modern packaging, electronics, and automotive materials demand films with multiple properties—barrier function, mechanical toughness, heat-sealability, and cost-efficiency. Gwell has advanced the engineering of multi-layer feedblocks to ensure laminar flow stability at the confluence of diverse polymeric materials. When co-extruding polymers with different rheological characteristics (such as Polyethylene and EVOH), feedblock channel design is vital to prevent interfacial instability and subsequent encapsulation defects. Our feedblocks utilize customizable flow channels, enabling engineers to tweak shear rates and match polymer velocities precisely at the merge point.

2. Advanced Thermal Regulation and automatic Die-Lip Profiling

Consistency in the transverse direction (TD) profile is the hallmark of modern high-speed extrusion. Gwell’s systems utilize closed-loop thickness control. By integrating non-contact thickness measurement systems (beta or gamma ray sensors) with automatic thermal-bolt dies, Gwell’s lines continuously adjust local die gaps. The automatic thermal bolts expand or contract based on real-time feedback, maintaining thickness tolerances within +/- 1% across a wide range of web widths. Furthermore, the internal design of our T-dies minimizes melt residence time, preventing degradable polymers (like PVDC or EVOH) from carbonizing on the die walls.

3. Specialized Extrusion for Engineering and Fluoropolymers

Processing advanced materials like ETFE, PFA, PEEK, and PVDF requires highly corrosion-resistant machinery due to the release of trace acids at elevated processing temperatures. Gwell addresses this by deploying nickel-based alloys (such as Hastelloy) or bimetallic treatment on screws, barrels, and flow adapters. Temperature control must be accurate within ±0.5°C to avoid polymer degradation or structural non-homogeneity. From solar backsheets (PVDF) to clean-room packaging (ETFE/PFA), Gwell lines deliver continuous stability under extreme processing windows.

1. Clean Energy & Solar Photovoltaics (EVA, POE, EPE)

The global shift toward green energy has accelerated demand for solar cell encapsulation. EVA (Ethylene-Vinyl Acetate) and POE (Polyolefin Elastomer) films are essential for protecting crystalline silicon solar cells. However, processing these materials is notoriously difficult. The extruder must operate at a lower melt temperature (under 120°C) to prevent the organic peroxide cross-linking agents from reacting in the screw and barrel. Gwell solves this challenge by implementing custom-engineered barrier-type screws with deep-flighted cooling channels and high-torque gearboxes, delivering high output without excessive shear heat.

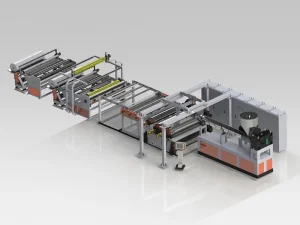

2. Intelligent Automotive Components & Safety Glazing (PVB Wedge Film)

For modern head-up displays (HUD) in smart vehicles, a PVB interlayer film with a precise wedge-shaped cross-section is required. This wedge structure prevents double-image projections. The manufacturing demands for PVB wedge film extrusion are strict, requiring thickness profiles with micron-level tolerances. Gwell utilizes dedicated extrusion dies with adjustable slot geometry and special chill-roll systems to cool the wedge film dynamically, ensuring the taper angle remains consistent throughout the production run.

3. Factory 4.0: Lean Production and Supply Chain Resilience

Operating three advanced manufacturing bases across China enables Gwell to maintain complete control over the production supply chain. From in-house CNC machining of major components to assembly and testing, we eliminate manufacturing bottlenecks. This level of vertical integration guarantees shorter delivery times, consistent manufacturing standards, and direct control over materials—ultimately offering global buyers high cost-performance value without sacrificing reliability.
